Resilient, Compact, Dynamic

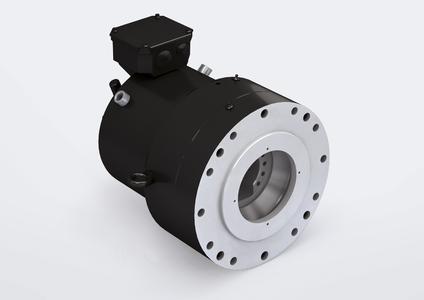

With a new version of the three phase current synchronous motor DSC, Baumüller, the Nuremberg provider of drive and automation solutions, offers a compact and quick-accelerating drive. This DSC 135 derivative was designed with particular attention to the plastics industry and here as ejector drive. For this reason, the motor features a special mount for axial process force compensation in addition to a compact design and high dynamics. Manufacturers of plastics processing machines also benefit from a special mechanical interface for spindle connection and the high overload capability of the motor. The DSC 135 offers a maximum torque of up to approx. 560 Nm, a nominal torque of up to approx. 280 Nm, and a speed range of up to approx. 2,000 rpm. The drive can be operated with a multiturn encoder. Other encoder variants are also possible as options. For maximum power density, the motors are also available with integrated water cooling.
