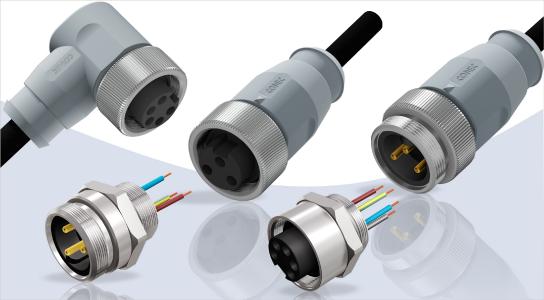

CONEC 7/8“-Connectors wire cross section 2,5 mm²- AWG14

high power transmission due to enlarged wire cross-section

(PresseBox) (Lippstadt, )
For many years, circular 7/8“-connectors have been available for the requirements of the American market. In addition to overmoulded cable connectors, the product portfolio also includes field-attachable-connectors as well as flange connectors with strands or for direct PCB assembly.

In order to meet the increased demands for higher power transmission, the product portfolio of the 7/8” connectors has been developed with new variants of connectors overmoulded and sockets with wire connection. These versions have a stranded cross-section of 2.5 mm² instead of 1.5 mm², which gives a current load capacity of 16 A at an ambient temperature of 40°C.
The overmoulded connectors are available in axial and angled design with 2+PE as well as 4+PE and PVC as well as TPU cables. The flange connectors with strands are available in axial form for front panel mounting (male & female) and back panel mounting (male) , whereby other flange variants can also be offered on request.

Benefits
High power transmission
Degree of protection IP67 (Sockets)
Degree of protection IP68 (Connectors overmoulded)


Fields of application
Automation technology
Industrial interfaces
Agricultural and construction machines
Machine manufacturing
Process control
Transport industry

Attachments

CONEC Elektronische Bauelemente GmbH

For more than 40 years, CONEC Elektronische Bauelemente GmbH has been developing, producing and marketing high-quality connectors, patch cable and single ended cable as well as enclosure technology.
CONEC products are used in automation, telecommunications and energy technology, machine manufacturing, agriculture and medical technology, transportation and the aviation industry.

The headquarters in Lippstadt has a large research and development department, its own tool-making department, a CNC-turning department and a synthetics injection moulding plant.

As part of the Amphenol Group, CONEC participates in the growth and development opportunities of a globally active group and at the same time acts flexibly and quickly as a medium-sized company in order to optimally adapt to changing customer needs.

In addition to a variety of connectors for all current standards, our particular strength is the integrated moulding of components and assemblies and the development of customized solutions.

CONEC is a global player with its own subsidiaries and/or production sites in Canada, the USA, China, the Czech Republic, Poland and France.

The product portfolio includes connectors of the following categories:

• D-SUB/IP67 D-SUB Connectors
• IP67 RJ45 / USB / Mini USB / Fiber Optic LC Duplex
• CONEC Hybrid Connectors
• Connectors for agricultural and construction machines
• Circular Connectors
• PCB Connectors
• Customer specific solutions

The company’s quality management ensures high quality by applying the international standards DIN EN ISO 9001. Depending on the product family, CONEC industrial connectors are tested and approved in accordance with UL, CSA or VDE.
