HRADIL’s twin cable is suitable for use as a replacement cable for KASRO® working and rehabilitation robots. Thanks to the selection of high performance materials and state of the art cable engineering, HRADIL’s twin cable wins points for significantly enhanced bending radii, obptimized cable diameters and longer service life. The new HRADIL twin cable is available from stock. www.kanalkabel.de
Innovative, high quality Materials.

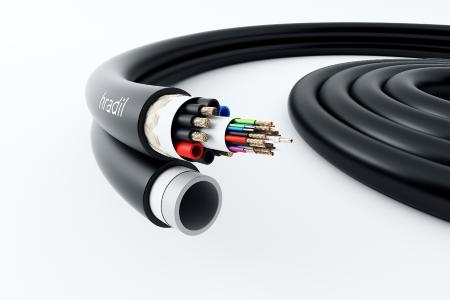

HRADIL Spezialkabel introduces a new hybrid cable which has been specially designed for the controlling of robots, such as the KASRO® sewer rehabilitation robots, and for their power and pneumatic supply. Four 4 mm PA pneumatic hoses are combined with the copper wires to form one cable, a fifth PUR hose of 16 mm is the twin. Technical construction: 6 x 1.5 mm2, 17 x 0.5 mm2, 4 x (2 x 0.25 mm²), 4 x PA hose 2.5 x 4.0 mm², PUR hose 13 x 16 mm².
What makes the new twin cable so special is that it combines an incredible packing density with a very small diameter. The high mechanical loads - in the form of tensile and tear stress as well as alternating bending stress – which are brought to bear on the inner components of the cable during sewer rehabilitation work are no problem for HRADIL. An extremely robust outer jacket made from a particarly strong PUR special compound provides stability to the assembly and protects it against abrasive wear. HRADIL’s twin cable is resistant against oil and petroleum and also against ozone and UV radiation as well as cooling fluids and lubricants.
KASRO® is a brand of ProKASRO Mechatronik GmbH 76187 Karlsruhe, Germany
