2 10/100/1000T + 2 100/1000 SFP +8 10/100TX L2+ Industrial Managed Switch w/ITU G.8032 Ring
IEC61850-3 & IEEE1613 compliant
ITU G.8032 standard ring protection < 20ms incl. data & multicast packets; MSTP
Support ACL L2/L3, IGMP v3/router port, Static multicast forwarding, MVR, QinQ, SSH/SSL, TACAS+, SMS alert
Miss-wiring avoidance & Repowered auto ring restore
User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values
Supports PTP IEEE1588 v2 (under 1μs)
Environmental Monitoring for temp. voltage & current
1500VDC Isolated Power /10KB jumbo frame

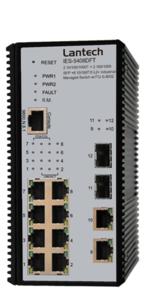

Lantech IES-5408DFT is a high performance L2+ industrial switch which provides 8x10/100TX +2 10/100/1000T + 2 100/1000 SFP uplinks with hardware PTP v2 support that complies with IEC 61850-3 & IEEE 1613. It delivers ITU G.8032 ring recovery less than 20ms, comprehensive QoS, advanced security including ACL L2/L3, TACAS+, SSH/SSL, DHCP Option 82 and IGMPv1/v2/v3 & routing, QinQ (double tag VLAN) , MVR (multicast VLAN registration), which are important features required in large network. It also supports Cisco Discovery Protocol (CDP) and LLDP for Ciscoworks to detect the switch info and show on L2 map topology.
Lantech IES-5408DFT ITU G.8032 ring which can be self-healed in less than 20ms up to 256 switches that covers data & multicast packets protection. It also supports MSTP that allows RSTP over Vlan for redundant links. The embedded WEB UI supports auto topology drawing when the switches are connected in a ring in which each node's detail can be shown in the drawing. Auto configurator* for ITU ring is to calculate owner, neighbor and others automatically without manual setting to avoid loop.
The IES-5408DFT also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IES-5408DFT is able to alert with the LED indicator and send out an email, traps or a SMS text. Repowered auto ring restore function ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. This feature prevents the broken ring and keep ring alive without any re-configuration needed. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.
The user friendly UI, innovative auto topology drawing and topology demo makes IES-5408DFT much easier to get hands-on. The IES-5408DFT supports DMI interface that can correspond with DDM SFPs (Digital diagnostic monitor) to display the five parameters in Lantech's UI, including optical output power, input power, temperature, laser bias current and transceiver supply voltage. The TX power/RX power raw data is automatically converted to dB values for installer, making it easier to calculate the fiber distance.
Lantech IES-5408DFT designs with redundant firmware where can survive if the primary firmware is crashed due to improper upgrading. The configuration file can also be exported in text file so that it can be edited and configured back to switch with ease for mass deployment. The factory reset button can restore the setting back to factory default and built-in watchdog design can automatically reboot the switch when cpu is found dead.
The IES-5408DFT DIDO function can support additional open/close physical contact for designate applications besides Port / Power events, for example, DIDO function can trigger alarm if the switch was moved or stolen. In case of events, the IES-5408DFT will immediately send an email to pre-defined addresses as well as SNMP Traps out. It provides 2DI and 2DO while disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.
The optional environmental monitoring can detect switch overall temperature, voltage and current where can send the SNMP traps, email and SMS alert when abnormal Lantech IES-5408DFT model features hardware-based PTP IEEE1588 v2 function which can allow 2x 10/100/1000T and 2x100/1000M SFP uplinks to synchronize the network with precise accuracy (under 1μs). The built-in RTC (real time clock) can keep track of time always.
The Lantech IES-5408DFT is designed with dual power input with 1500VDC isolation for ±24~48VDC. Featured with relay contact alarm function, the IES-5408DFT-PTP is able to connect with alarm system in case of power failure. The IES-5408DFT-PTP also provides 3000V EFT and 6000V ESD protections, which can reduce unstable condition caused by power line and Ethernet.
Lantech IES-5408DFT-PTP features high reliability and robustness compliant with extensive EMI/RFI phenomenon, lighting surge, inductive load switching environment usually found in Substation, Steel automation, Mining and Process control. Widely operational temperature capacity (-E-40°C ~ 75°C) ensures IES-5408DFT runtime through the harsh environment.
