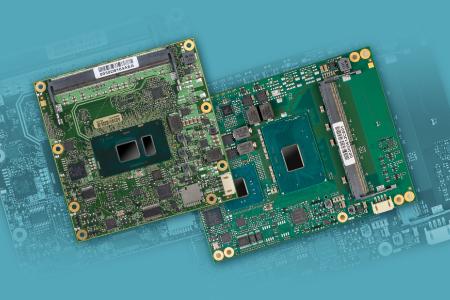

The powerful MSC C6C-KLU COM Express™ modules in the Compact form factor of 95 mm x 95 mm have a typical power consumption between 17 W and 19 W and are suited for compact high-end embedded systems. The operating temperature ranges from 0 – 60 °C. MSC Technologies offers four variants with the dual-core processors Intel® Core™ i7-7600U, i5-7300U, i3-7100U, and Intel® Celeron® 3965U. The on-chip Intel® HD Graphics Gen. 9 supports DirectX® 12, OpenGL 4.4., and OpenCL 2x. Hardware-based graphics acceleration and video encoding/decoding complete the feature list. Three independent displays with up to 4k x 2k resolution can be connected. The modules can be equipped with up to 32 GB DDR4 memory in two SO-DIMM sockets. An integrated Trusted Platform Module (TPM) and an optional Secure Boot BIOS ensure additional security features. The wide range of modern interfaces includes USB 3.0/2.0 ports, PCI Express™, SATA, and the display interfaces DisplayPort, DVI/HDMI and LVDS or embedded DisplayPort (eDP).
With the MSC C6B-KLH Type 6 COM Express™ module family in the Basic form factor of 125 x 95 mm, MSC Technologies rounds off the top end of its product portfolio. The powerful boards are offered with numerous processor variants: Intel® Core™ i7-7820EQ, i5-7440EQ, i5-7442EQ, i3-7100E, i3-7102E with four or two CPU cores or with quad-core Intel® Xeon® E3-1505Mv6 and E3-1505Lv6. The typical power consumption is between 35 W and 55 W depending on the module type. The high-end processor boards operate between 0 – 60 °C.
Visit MSC Technologies at embedded world 2017 in Nuremberg, Hall 2, Booth 238.
