Optimized PICMA® Chip Actuators for Ultrasound Applications in Medical Technology

To generate ultrasound oscillation, PI Ceramic offers optimized PICMA® Chip miniature multilayer piezo actuators for resonant, high dynamics operation

(PresseBox) (Karlsruhe, )
PI Ceramic manufactures new ring chips in multilayer technology that allow resonant operation. This means that it is possible to generate oscillation with frequencies of up to 100 kHz with an operating voltage of a few volts – a combination that has not been offered before in series production.

The technology is particularly interesting for devices in mobile applications such as for example, ultrasonic scalpels or for generating aerosols in medical devices. The low voltages make battery operation possible and rule out any health risks.

The mechanical quality factor of the modified PIC182 piezo material is high and that allows comparatively large mechanical displacement in resonance mode.

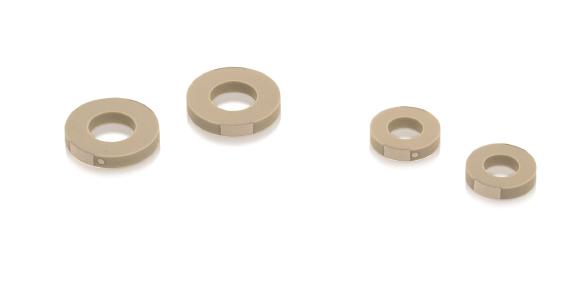

The chip actuators are offered as disk or ring and the standard outer diameters range from 8 mm to 16 mm. Customized dimensions and shapes are also possible.

The new multilayer piezo actuators have precision-ground end faces and all-ceramic insulation, which makes them suitable for use under high mechanical preloads.



For more information, refer to: https://www.piceramic.com/en/applications/medical-technology/aerosolproduction/
