The significance of air quality measurements whether in industry, households or in vehicles is constantly increasing. Manufacturers therefore, should equip their applications with the optimal sensor fan and in this respect SEPA EUROPE is exactly the right partner!

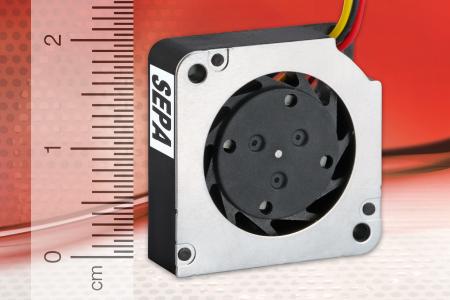

SEPA EUROPE has complemented its range of microfans with the radial fan HY20A with the dimensions of 20 x 20 x 6.3 mm. The air intake of the radial fan which is on one side is 2 l/min and with a sound pressure level of 5dB(A) at a distance of 1m, it is virtually inaudible.
As is the case with all microfans, the HY20A is equipped with the reliable Magfix sleeve bearing and has a service life of 210 000 h (MTBF) or 40 000 (L10) at 40°C. The tachometer output constantly monitors the speed at which the fan is running.
The HY20A is also an interesting solution for the cooling of hot spots in embedded applications. This compact blower ensures that optimal use is made of limited installation space.
SEPA EUROPE has complemented its range of microfans with the radial fan HY20A with the dimensions of 20 x 20 x 6.3 mm. The air intake of the radial fan which is on one side is 2 l/min and with a sound pressure level of 5dB(A) at a distance of 1m, it is virtually inaudible.
As is the case with all microfans, the HY20A is equipped with the reliable Magfix sleeve bearing and has a service life of 210 000 h (MTBF) or 40 000 (L10) at 40°C. The tachometer output constantly monitors the speed at which the fan is running.
The HY20A is also an interesting solution for the cooling of hot spots in embedded applications. This compact blower ensures that optimal use is made of limited installation space.
