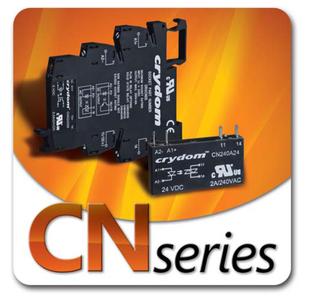

Texim Europe recently introduced Crydoms new line of pluggable/solderable single in-line Solid State Relays, DIN rail mounted sockets and ready to use SSR/Socket Assemblies. The 5 mm wide CN series SSRs meet industry standard pin out configurations for both Solid State and Electromechanical relays and are designed to be plugged into Crydom DRSCN series sockets or soldered into printed circuit boards. This makes them ideal for many control applications historically serviced by less reliable EMRs.
Featuring all solid state optically coupled designs, CN series models are available with either a 240/2 amp AC output, 24/3.5 amp DC output, or 48/0.1 amp DC output. Available input configurations include 2.5 to 12 VDC, 15 to 30 VDC and 38 to 72 VDC.
DRSCN series DIN rail mounted sockets include input status LED indicator and are available for 5 to 12 or 15 to 30 VDC control inputs, and 60 to 120 or 60 to 250 VAC/VDC control inputs. The 6.2 mm wide DRSCN sockets are designed to accept industry standard 5 mm wide SSRs or EM relays and snaps onto standard 35 mm DIN rail. SSRs are easily plugged into the sockets and removed via a convenient latch mechanism. Available Marker Strips for the sockets are also offered to allow easy circuit function identification for each socket.
Combining the CN relays and DRSCN sockets, Crydom also offers ready to use SSR/Socket assemblies. The DRA-CN series of assemblies offer all of the features and benefits of both the CN SSRs and DRSCN sockets, but in a ready to use configuration.
Features CN series SSRs
5 mm Mini SIP SSRs
Ratings 24 VDC @ 3.5 A, 48 VDC @ 100 mA and 240 VAC @ 2 Ar
DC Control 5, 24 and 60 V
IP67-protected fully encapsulated
UL & cUL recognized, UL 100 K cycle extended endurance tested, CE & RoHS compliant
Features DRACN series Assemblies
6.2 mm Base Terminal Block Design
5 & 24 VDC and 120 & 240 VAC Control Input Options
24 VDC @ 3.5 A, 48 VDC @ 100 mA and 240 VAC @ 2 A Operating Voltage Rating
Socket clip fits all standard 35 mm DIN rails
UL & cUL recognized SSRs & sockets, UL 100 K cycle extended endurance tested SSRs, CE & RoHS compliant SSRs, sockets & assemblies
More info on:
http://www.texim-europe.com/...
