Digitizer for FlexRay-Bus signals available

The new digitizer from VX Instruments, with the FlexRay-Bus option, enables the user to capture, store and analyze FlexRay-Bus signals.

(PresseBox) (Landshut, 11th. march 2008, )

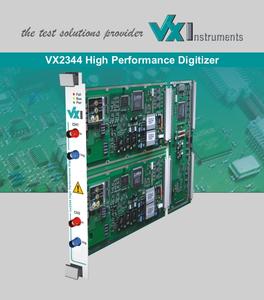

VX Instruments, a leading measurement expert for fast production test solutions, is now delivering the VX2344 High Performance Digitizer.
It is a VXI-Bus based solution. On each VXI-Bus card are two digitizer with independent or common sample rate per channel. It is a fully isolated design with floating inputs. The differential FlexRay-Bus input option is ideal for capturing FlexRay-Bus signals.

VX2344 High Performance Digitizer features:
- 100MS/s Sampling rate
- 14Bit Resolution, optional 16Bit
- 2 channel digitizer
- 100MHz bandwidth
- Fully isolated design, floating inputs
- Input voltage range up to +/- 250V (500Vpp)
- Independent sample rate / channel
- Internal or external analog trigger / channel
- Designed for high throughput testing
- Option: Differential FlexRay-Bus input

VX Instruments GmbH

Die VX Instruments GmbH ist ein Spezialist für modulare Lösungen im Produktionstest und verfügt über mehr als 50 Jahre Erfahrung im Bereich der automatischen Mess-, Prüf-, und Systemtechnik. VX Instruments liefert Messgeräte, Testsysteme und Komplett-Lösungen für den 24h-Produktions- test speziell in den Bereichen Halbleiter, Automobil-Elektronik, aber auch für andere elektronische Baugruppen.

In diesen Bereichen werden an die Präzision und Mess-Geschwindigkeit besondere Anforderungen gestellt. Diese erfüllt VX Instruments z.B. mit speziell für diese Einsatzgebiete entwickelten potentialfreien Digitizer, Timer/Counter etc.

Unsere Standard-Software-Module können schnell an die Bedürfnisse der Kunden angepasst werden. Bei Bedarf können auch komplette Software- Module für Kunden-Anforderungen implementiert werden.
