Wunderlich‘s complete undercarriage protection for the BMW F 850 GS and F 850 GS Adventure: Combination of »EXTREME« engine protection and the suitable centre stand protection plate.
The centre stand protection plate is the consistent and logical addition to the Wunderlich »EXTREME« engine protection. The engine protection reliably protects the engine, manifold, front silencer and oil sump. The centre stand plate provides additional protection for the centre stand, the exhaust silencer and the swing arm mounting. This significantly reduce the hazards to man and technology from bottoming out or, in some situations, dangerous levering of the machine during off-road use, and decisively increases passive safety.
»EXTREME« engine protection
The »EXTREME« engine protection from Wunderlich combines maximum ground and lean angle clearance with reliably, formally appealing protection of the engine, manifold and front silencer. Wunderlich produces this protection using the interesting manufacturing technique called „hydroforming“, a deep-drawn process in which the part to be moulded is deep-drawn in the moulding matrix under high hydraulic pressure. This is how the Rhinelanders manage to achieve complex component forms that demonstrate a low component weight with high rigidities and mechanical stability. The result is weight and form-optimised engine protection that moulds so tightly and organically to the aggregate that the design principle of „form follows function“ becomes self-evident. The functional, integrated design reduces the area of attack and avoids unpleasant levering or jamming of the vehicle over terrain, no matter whether from branches, scree or rocks. Openings ensure that water picked up during river crossings can flow out freely again. Typically Wunderlich, the team have made sure that you have good, unrestricted access during maintenance works: for example, an opening has been included for unhindered drainage of the engine oil. The aluminium engine protection is corrosion-resistant and the generated forces and vibrations are absorbed by impact-decoupling attachment elements. It comes in two versions, silver or black powder coated. The »EXTREME« engine protection is Made in Germany, so it comes with a 5 year warranty. The price comes in at €219.00 incl. VAT*).

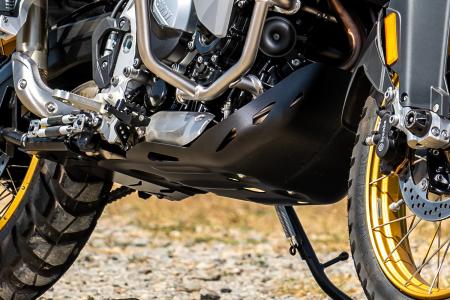

The centre stand protection plate
The centre stand protection plate provides reliable protection for the centre stand, the exhaust outlet and the swing arm mounting. In combination with the matching »EXTREME« engine protection, all technical components between the front and rear wheels are reliably protected against mechanical loads such as bottoming out or stone chips. Furthermore, should it bottom out, the bike can glide along the ground on a fully protected undercarriage until the rear wheel finds grip again. The threat of the machine getting caught or levered through the use of high-strength, anti-corrosive aluminium with a material thickness of 4 mm. The form-fitting assembly on the centre stand provides even greater stability. In keeping with the engine protection, it comes in two versions: silver or black powder coated. The design of the centre stand protection plate is functional and integrates well. It is Made in Germany, so Wunderlich also provides you with a 5 year warranty on this product. The price comes in at €89.90 incl. VAT*).
Item-No.:
26840-301 - Wunderlich »EXTREME« engine protection silver powder coated
26840-302 - Wunderlich »EXTREME« engine protection black powder coated
25852-001 - Wunderlich centre stand protection plate silver powder coated
25852-002 - Wunderlich centre stand protection plate black powder coated
Web links:
www.wunderlich.de/en/
www.bmw-f850gs.com
All-round protection and safety components for BMW F 850 GS + Adventure
Important note about our company:
Please see our information about our relocation to our new corporate headquarters.
The following link will take you to our landing page, which contains a summary of all important information as well as an illustrative time line:
www.off-and-away.wunderlich.de/en
* Prices may vary from country to country
