- 8 10/100TX PoE at/af Industrial Switch
- EN50155/50121-3-2/50121-4 compliance
- Provides M12 connector with IP67 / IP43 rated protection
- IEEE802.3at/af up to 30W PoE output
- 12V power input boost to 48V output
- Wide Operating Temperature from -40°C to 75°C
- Wide range redundant power inputs

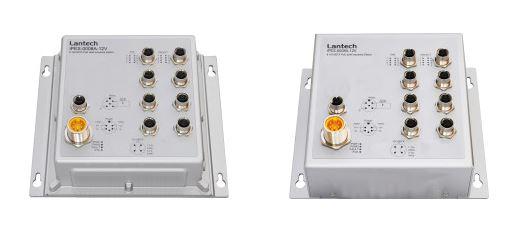

Lantech IPES-0008A-12V (IP67/IP43) is an 8 10/100 Base-TX with M12-connctor unmanaged industrial switch for IP67 or IP43 rated protection, which meets the high reliability requirements demanded by industrial rolling stock applications.
The IPES-0008A-12V (IP67/IP43) supports IEEE802.3at/af standard which can feed HI-power up to 30W at each PoE port for big power consumption devices like PTZ IP camera, High power wireless AP etc. The model is able to take 12V input and boost to 48V output for PoE feeding in vehicle use with IEEE802.3at/af standard up to 30W per PoE port with maximum 90W output.
The IPES-0008A-12V (IP67/IP43) is designed to meet with critical network environment with IP67/43 enclosure and M12 connectors for protection against dust and water. IP67 model can be immersed 1 meter under water for 30 minutes long, so it is the best to place in the highly damp and moisture area in the train, vehicle or rail-side. Both have passed harsh environmental testing to comply with Industrial EMI and Safety standards as well as stability testing such as Free fall, Shock, and Vibration. For a greater flexibility in application the IPES-0008A-12V (IP67/IP43) supports an extended operating temperature range from -40°C to 75°C.
The IPES-0008A-12V (IP67/IP43) is compliant with EN50155/ 50121-3-2/ 50121-4 (railway applications), NEMA TS2 (Traffic Control System) and e-Mark, making the switch suitable for various industrial rolling stock applications.
