- 8 10/100TX PoE at/af + 2 GigaT Industrial Switch
- EN50155/50121-3-2/50121-4 compliance
- Provides M12 connector with IP67 / IP43 rated protection
- IEEE802.3at/af up to 30W PoE output
- 12V power input boost to 48V output
- Optional 72V input steps down to 48V output for IEEE 802.3at/af max.100W
- Wide Operating Temperature from -40°C to 75°CWide range redundant power input

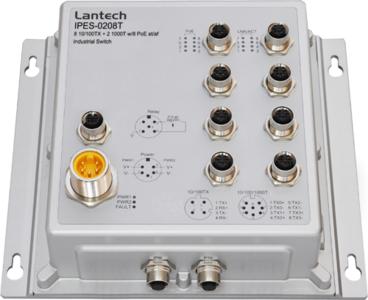

Lantech IPES-0208T-12V (IP67/IP43) is an 8 10/100 Base-TX + 2 GigaT w/8 PoE at/af injectors M12-connctor unmanaged industrial switch for IP67 or IP43 rated protection, which meets the high reliability requirements demanded by industrial rolling stock applications.
The IPES-0208T-12V (IP67/IP43) supports IEEE802.3at/af standard which can feed HI-power up to 30W at each PoE port for big power consumption devices like PTZ IP camera, High power wireless AP etc. The IPES-0208T-12V is able to take 12/24V input and boost to 48V output for PoE feeding in vehicle use with IEEE802.3at/af standard up to 30W per PoE port with maximum 90W output. 72V input model can feed 48V PoE at max 100W.
The Lantech IPES-0208T-12V (IP67/IP43) is designed to meet with critical network environment with IP67/43 enclosure and M12 connectors for protection against dust and water. IP67 model can be immersed 1 meter under water for 30 minutes long, so it is the best to place in the highly damp and moisture area in the train, vehicle or rail-side. Both have passed harsh environmental testing to comply with Industrial EMI and Safety standards as well as stability testing such as Free fall, Shock, and Vibration. For a greater flexibility in application the IPES-0208T-12V (IP67/IP43) supports an extended operating temperature range from -40°C to 75°C.
The Lantech IPES-0208T-12V (IP67/IP43) is compliant with EN50155/ 50121-3-2/ 50121-4 (railway applications), NEMA TS2 (Traffic Control System) and E-Mark, making the switch suitable for various industrial rolling stock applications.
