- ITU G.8032 standard ring protection < 50ms incl. data & multicast packets; MSTP
- Miss-wiring avoidance & Repowered auto ring restore
- User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values
- Support ACL L2/L3, IGMP v3/router port, Static multicast forwarding, MVR, QinQ, SSH/SSL, TACAS+*, SMS alert
Environmental Monitoring for temperaur,. voltage & current in special model available

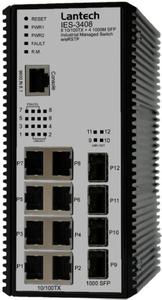

Lantech IES-3408GSFP is a high performance L2+ industrial Gigabit uplink switch which provides L2 wire speed and advanced security function for network aggregation deployment. It delivers ITU G.8032 ring recovery less than 50ms, comprehensive QoS, advanced security including ACL L2/L3, TACAS+*, SSH/SSL, DHCP Option 82* and IGMPv1/v2/v3 & routing, QinQ (double tag VLAN) , MVR (multicast VLAN registration)*, which are important features required in large network. It also supports Cisco Discovery Protocol (CDP) and LLDP for Ciscoworks to detect the switch info and show on L2 map topology.
The IES-3048GSFP also embedded several features for stronger and reliable network protection in an easy and intuitive way. When the pre-set ring configuration failed or looped by miss-wiring, Lantech IES-3048GSFP is able to alert with the LED indicator and send out an email, traps or a SMS text. Repowered auto ring restore function ensures the switches in a ring to survive after power breakout is back. The status can be shown in NMS when each switch is back. This feature prevents the broken ring and keep ring alive without any re-configuration needed. Loop protection is also available to prevent the generation of broadcast storm when a dumb switch is inserted in a closed loop connection.
The user friendly UI, innovative auto topology drawing and topology demo makes IES-3408GSFP much easier to get hands-on. The switch also equips the RTC (real time clock) which can keep track of time always. The IES-3408GSFP supports DMI interface that can correspond with DDM SFPs (Digital diagnostic monitor) to display the five parameters in Lantech's UI, including optical output power, input power, temperature, laser bias current and transceiver supply voltage***. The TX power/RX power raw data is automatically converted to dB values for installer, making it easier to calculate the fiber distance.
Lantech IES-3408GSFP features ITU G.8032 ring which can be self-healed in less than 50ms up to 256 switches that covers data & multicast* packets protection. It also supports MSTP that allows RSTP over Vlan for redundant links.
Lantech IES-3408GSFP designs with redundant firmware** where can survive if the primary firmware is crashed due to improper upgrading. The configuration file can also be exported in text file so that it can be edited and configured back to switch with ease for mass deployment. The factory reset button can restore the setting back to factory default and built-in watchdog design can automatically reboot the switch when cpu is found dead.
The IES-3408GSFP DIDO function can support additional open/close physical contact for designate applications besides Port / Power events, for example, DIDO function can trigger alarm if the switch was moved or stolen. In case of events, the IES-3408GSFP will immediately send an email & SMS text message to pre-defined addresses as well as SNMP Traps out. It provides 2DI and 2DO while disconnection of the specific port was detected; DO will activate the signal LED to alarm. DI can integrate the sensors for events and DO will trigger the alarm while sending alert information to IP network with email and traps.
The optional environmental monitoring can detect switch overall temperature, voltage and current where can send the SNMP traps, email and SMS alert when abnormal.
The Lantech IES-3408GSFP is designed with redundant power supply at 12/24/48VDC. Featured with relay contact alarm function, the IES-3408GSFP is able to connect with alarm system in case of power failure. The IES-3408GSFP also provides 3000V EFT and 6000V ESD protection, which can reduce unstable situation caused by power line and Ethernet.
Lantech IES-3408GSFP features high reliability and robustness coping with extensive EMI/RFI phenomenon, environmental vibration and shocks usually found in factory, Substation, Steel automation, Aviation, Mining and Process control. It is the best solution for Automation, transportation, surveillance, Wireless backhaul, Semi-conductor factory and assembly lines.
http://www.lantechcom.eu/...
