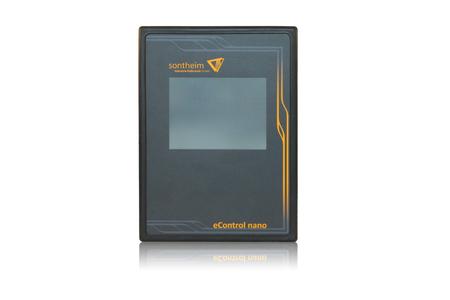

The smallest unit of the eControl product family is equipped with a powerful microcontroller for signal processing and a co-processor which handles the I/O's and control processes. The modular architecture enables optional adjustments and quick reactions to custom requirements. eControl nano is equipped with 3.5" touch display. The screwable front-installation frame with integrated recirculating seal ensures easy mounting. The control unit has a front-side IP67 protection against dust and dirt, as well as water splashes.
The fanless system is equipped with two CAN interfaces according to DIN 11898 and has an Ethernet, RS232 (TTL) and USB interface, as well as four potential-free inputs and relay outputs up to 230V. An integrated temperature sensor, real-time clock and power fail detection are also implemented. On memory side there are 1MByte Flash memory, a remanent memory with 4kbyte and a micro-SD slot for up to 32GB of additional storage volume integrated.
The programming of the controller is done in C (a HAL is available), benefit from free configuration, parameterization and programming possibilities. With emWin from Seeger, libraries for a graphical user interface (GUI) are already available. Optionally eControl nano can also be programmed with the runtime system CODESYS V3 according to IEC 31131-3.
