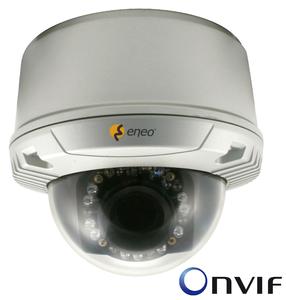

Flexible integration is provided by the new GXD-1510M/IR Network Dome even for existing IP surveillance solutions: compliance with the ONVIF standard ensures it can exchange information with products from other manufacturers, making it the ideal choice for installation in multivendor systems. The durable polycarbonate housing is vandalism-resistant with IP66 protection and furthermore guarantees reliability for outdoor use and in locations at risk from camera manipulation, destruction or other operational impairments, for instance in public transport systems, schools, prisons or retail outlets.
At a resolution of 1280x960 pixels the GXD-1510M/IR delivers an image transmission rate of 25 fps. The light sensitivity at 50% video signal is 0.5 Lux (colour), the integral varifocal lens features a focusing range of 3.3-12mm. High-contrast pictures even in difficult light conditions, such as in entrance areas with backlight, are generated by the Wide Dynamic Range function that automatically selects optically illuminated image sections from different exposure phases and then combines them into an overall picture. The integrated switchable IR cut filter also ensures night-time video imagery is clear. And there is no need for additional illumination as the dome comes with 18 integrated 850nm LEDs giving an illumination range of approximately 20 metres.
Additional functions include privacy zones, 2x to 10x digital zoom, integrated motion detector as well as Power over Ethernet allowing power to be supplied over the same network cable used for data transmission thus making additional cabling unnecessary. Further security is provided by the recording option on SD card: video imagery is automatically stored on the card when an alarm is triggered so that evidence is secured even when the network is down.
The shipping package includes GL Manager - a software solution for management, playback and recording of up to 16 video sources with a feature set that covers the majority of application requirements.
At a resolution of 1280x960 pixels the GXD-1510M/IR delivers an image transmission rate of 25 fps. The light sensitivity at 50% video signal is 0.5 Lux (colour), the integral varifocal lens features a focusing range of 3.3-12mm. High-contrast pictures even in difficult light conditions, such as in entrance areas with backlight, are generated by the Wide Dynamic Range function that automatically selects optically illuminated image sections from different exposure phases and then combines them into an overall picture. The integrated switchable IR cut filter also ensures night-time video imagery is clear. And there is no need for additional illumination as the dome comes with 18 integrated 850nm LEDs giving an illumination range of approximately 20 metres.
Additional functions include privacy zones, 2x to 10x digital zoom, integrated motion detector as well as Power over Ethernet allowing power to be supplied over the same network cable used for data transmission thus making additional cabling unnecessary. Further security is provided by the recording option on SD card: video imagery is automatically stored on the card when an alarm is triggered so that evidence is secured even when the network is down.
The shipping package includes GL Manager - a software solution for management, playback and recording of up to 16 video sources with a feature set that covers the majority of application requirements.
