Zwick offers an improved and more effective solution for the compression testing of composites

(PresseBox) (Lorsch, )
Thanks to their special material properties, fibre-reinforced plastics are frequently used in the construction of airplanes, vehicles, boats, high-performance sports (racing bicycles, skiing, archery), and for the rotors of power-generating windmills. Compared to metals, fibre-reinforced plastics offer improvements in stiffness, strength, and durability and are lighter in weight. In order to test the high stability requirements, a fixture with a hydraulically operated specimen grip has been developed which offers several technical and economic advantages compared to existing and complicated mechanical jigs such as Celanese or IITRI devices.

• Simplification of the handling and loading of specimen into the fixture significantly reduces the testing time.

• Handling and alignment errors and invalid tests are virtually eliminated resulting in unrivalled precision and reproducibility of test results.

• Flexibility in design allows specimens with different geometries to be tested.

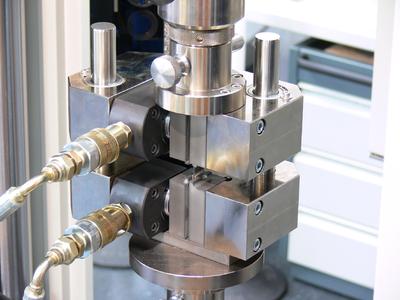

The new Hydraulic Composite Compression Fixture (HCCF) now available from Zwick was developed and patented by the IMA Material Research and Application Technology in Dresden and is used specifically for the testing of carbon-fibre-reinforced plastics (CFRP) and glass-fibre-reinforced plastics (GFRP) with unidirectional fibre-reinforcement. It was primarily designed for determining compressive characteristics and is suited for testing standards such as prEN 2850, DIN EN ISO 14126, DIN 65380, and QVA-Z10-46-38.

The open C-frame construction facilitates the simple and fast exchange of specimens, and in addition the attachment of extension measurement systems can be easily carried out. Due to the design and construction, the specimen is very precisely aligned as tolerances due to the set-up in traditional jigs, especially with a wedge clamping principle, have been avoided. A specimen guidance system minimizes any measurement error and variance, and in addition the test results are largely unaffected by frictional forces, due to the use of friction free ball guides, in the fixture.

The hydraulic clamping force mechanism guaranties a reliable and reproducible clamping of the specimens and the clamping force is applied uniformly and securely across the specimen. As a result the specimens are not subject to misalignment, eccentric forces, or slippage.

Exchange of specimens, inspection and cleaning of the clamping surfaces is simple to perform as the moveable jaws are magnetically attached to the fixture.

With the appropriate material selection the compression testing device can also be used at high or low temperatures in a range from -60 to +95° C. The ability to utilise either mechanical or high resolution optical strain measurement systems means that, in most cases, additional time can be saved by avoiding the need to prepare the specimens with strain gauges.

ZwickRoell GmbH & Co. KG

The Zwick Roell Group is a global leader in automated materials and component testing systems. With 150 years of testing experience and operating worldwide, it has manufacturing facilities in Germany and distribution and customer support headquarters in Atlanta, Georgia, USA, and Singapore. As of 2006 the group has 900 employees and sells to 20 different industry sectors through a network of sales and service offices in 56 countries. For more information see www.zwick.com
